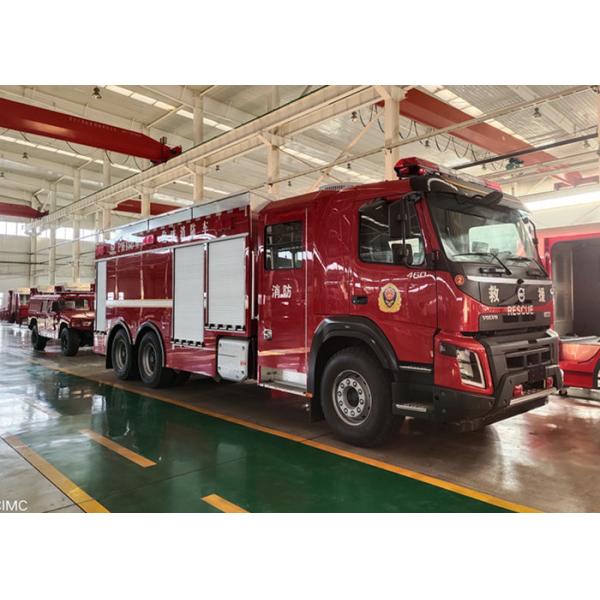

15000kg Water Foam and Dry Power Combined Water Tanker Fire Truck 90 L/s Pump
PM150 heavy-duty water foam fire truck, which adopts Volvo commercial chassis, double row driving room and rear passenger compartment, is a converted fire fighting special occupant room. It is a high-power water tank foam fire truck. It has many advantages such as large power, large capacity, etc. It can meet the fire rescue needs of factories and mines in the city, and can also carry a variety of demolition tools to participate in various emergency rescue work.
All cylinders are placed in a bottle rack to supply gas for dry powder tank. Nitrogen cylinder group is consisting of nitrogen cylinder, bottle valve, high pressure gauge, air inflation connection, high pressure ball valves and other components.
Vehicle
| Dimension (L×W×H) | 9980×2500×3500mm |
| Gross weight | 33000kg |
| Complete vehicle shipping mass | 15000kg |
| Max. power | 294kw/400HP |
Chassis
| Manufacturer | MAN |
| Model | TGS33.400 |
| Drive type | 6x4 |
| Emission standard | Euro 3 |
| Max. total mass | 15000kg |
| PTO | Suitable for pump operation |
| Engine Model | MAN D2066LF49 |
| Max. power | 294kw |
Fire pump
| Manufacturer | Rosenbauer |
| Model | R600 |
| Flow | 90L/s |
| Pressure | 1.0MPa |
| Water diversion | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Auto ring pump foam | PH48x2 |
| Type | Manual |
| Mixing ratio | 3%, 6% |
Pipeline
| Outlet pipeline | 2×DN80 ordinary pressure outlet 1×DN50 ball valve |
| Suction inlet | 1×DN150 suction coupling 1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN125 monitor pipeline 1×DN125 butterfly valve |
| Residual water outlet | Water cock |
| Pump drive system | NMV200 |
| Drive shaft | High balance precision |
Fire monitor
| Model | AKRON 3425 |
| Position | Rear roof |
| Flow | 80L/s |
| Pressure | 1.0MPa |
| Range | water≥75m ,foam≥65m |
Liquid tank
| Capacity | Water: 10000kg Foam: 2000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Pressure | 1.0MPa |
| Device | 2 manhole 1 overflow device 2 liquid level sensor 2 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
