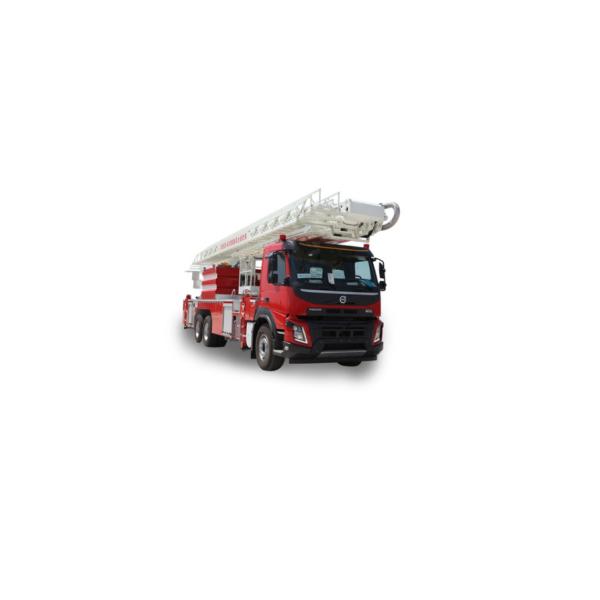

Volvo Chassis 44m Working Height Aerial Ladder Fire Truck with 7000kg Tanker
Product introduction:
DG44 type ascending platform fire truck, adopts Swedish Volvo chassis, adopts full rotation, straight telescopic arm and folding arm structure, the effective cooperation of straight telescopic arm and folding arm, can send the working platform to some limited space for various aerial works, greatly expanding the working range of the truck. It adopts electric control and hydraulic drive, which makes it easy be operable, flexible, safe and reliable, practical and so on. It is suitable for fire fighting and rescue of personnel and materials in high-rise buildings of large and medium cities and factories and mines.
Product Parameter:
| Boom Structure | Main boom + four telescopic booms + one folding boom, welded with HG70 high-strength steel |
| Max. working height | 44m |
| Max. working range | 21m |
| Main boom action angle | -3°～83° |
| Folding boom action angle | 0°～180° |
| Turntable slewing | Infinite rotation 360° |
| Rated Pump flow | 70L/s@1.7Mpa |
| Boom extending time | ≤140s |
| Outrigger extending time | ≤35s |
| Hydraulic system pressure | 21MPa |
| Max. wind velocity | 12.5m/s |
| Outrigger longitudinal and transverse | 5600×5300mm |
| Fire fighting system |
| Fire-fighting performance data | Range(water/ foam) | ≥70/60m |
| Foam proportioner | 6%(manual adjustment) |
| Liquid tank |
| Manufacturer | Shanghai Jindun |
| Capacity | Water: 5000kg Foam: 2000kg |
| Material | Stainless steel 304 |
| Structure | Shock-reducing rubber resilient mounting, set vertical and horizontal anti swing plate on subframe |
| Device | 2 manhole, with fast locking and opening device 2 fluid level gauge 2 drain outlet, with stainless steel ball valve 1 inner filling pipe end 4 outer filling pipe end |
| Pipeline | Water outlet | 4×DN80 ball value coupling |
| Suction inlet | 1×DN150 hermaphroditic coupling with lid cover(left side) |
| Water supply | 2×DN80 ball value coupling |
| Liquid inlet | 1×DN50 manual ball valve(left side) |
| Water outlet out of the platform | 1×DN65 ball value coupling(in front of platform) |
| Coupling type: quick coupling |
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
