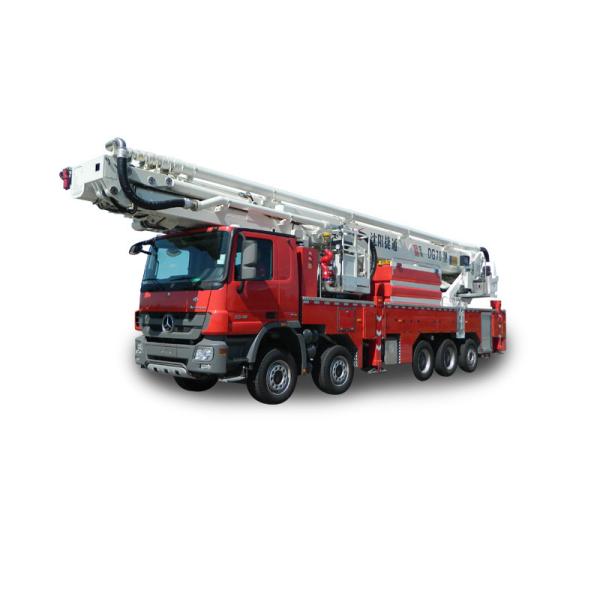

DG70 multi-functional Aerial Hydraulic Platform Fire Truck adopts German Mercedes Benz chassis, and all operative mechanisms are electrically controlled and hydraulically driven, so that the vehicle has the characteristics of simple operation, flexible action, safety, reliability and strong practicability. It is mainly used for fire-fighting of personnel and substance rescue of high-rise buildings in large and medium-sized cities, factories and mining enterprises. It is a international advanced high-altitude fire-fighting and rescue equipment which controlled by automatic computer.
1) Supporting mechanism
H-style outrigger is used for the truck, and is made of high strength alloy steel; sub-girder is a box frame which is weld by cold draw high intensity steel plate, thereby secure supporting mechanism safety and reliability.
2) Turntable and Luffing Mechanism
The main hydraulic pump is PTO-driven to produce the pressure to drive the hydraulic mechanism. Rotary mechanism is composed of planetary gear transmission mechanism, a set of brake devices and a high-speed hydraulic motor, the overall structure is compact, easy maintenance, small size and light weight. Turntable is driven by planetary reducer, hydraulic motor, and reliable self-locking rotating mechanism. The luffing mechanism consists of dual acting hydraulic cylinders, balance valve; the optimized combination to make good synchronization and good reliability.
3) Extendable Boom and Ladder Structure
The structure is welded by high-strength alloy steel cold drawn seamless profiles. The boom consists of Four (6) sections and one (2) fly-jibs, which are driven by chain and hydraulic cylinders. The side ladder is made of aluminium and telescopic synchronized with the movement of the booms, each section of ladder can load 2 people walking down at the same time.
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
