CIMC 6x4 Drive Foam-Pumper Water Tanker Fire Trucks with 65m Discharge Range
Vehicle
| Dimension (L×W×H) | 9720×2500×3700 (mm) |
| Gross weight | 28000 (kg) |
| Complete vehicle shipping mass | 15350 (kg) |
| Seat (inc. driver) | 2 |
| Max. power | 265kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Flattop Four door lengthen cab |
| Wheelbase | 4500+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≤21m |
| Approach angle | 17° |
| Departure angle | 13° |
| Engine type | In-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine |
| Model | OM501LA.IV/2 |
| Max. torque | 1850N.M |
| Emission standard | China IV/euro IV |
| Clutch | Monolithic, Dry |
| Gearbox | Manual, 16 forward gear |
Fire pump
| Manufacturer | Rosenbauer |
| Model | R600 |
| Pressure/ Flow | 1.0MPa/90L/s |
| Primer type | Piston primer pump |
| Max. vacuum degree | ≥85 kPa |
| Priming time | ≤80s |
| Air foam proportioner | PH48, manual, mixing ratio:3%, 6% |
Fire fighting system
| Suction inlet | 1×DN150 suction
1×DN150 pneumatic butterfly valve |
| Monitor pipeline | 1×DN100 monitor pipeline
1×DN100 butterfly valve |
| Outlet | 2×DN80 ordinary pressure outlet
1×DN50 ball valve |
| Residual water outlet | Water cock |
| Cooling water | Cooling installation |
Onboard equipments
| No. | Item | QTY | NOTE |
| 1 | Suction hose 150×2000mm | 4 | Snap-type |
| 2 | Fire hose 65mm×20m | 6 | Snap-type |
| 3 | Fire hose 80mm×20m | 6 | Snap-type |
| 4 | Water filter | 1 | Snap-type |
| 5 | Delivery bead FFS80 | 1 | three-way wye Snap-type |
| 6 | Collecting breeching FJ150 | 1 | Snap-type |
| 7 | Increaser KJ65/80 | 2 | 80 turn 65 |
| 8 | Increaser | 4 | 80 male and 65 male turn |
| 9 | Suction coupling | 1 | DN150 snap-type to DN100 screw type |
| 10 | Suction wrench FS150 | 2 | |
| 11 | Hose bandage FP470 | 4 | |
| 12 | Hose strap FG600 | 2 | |
| 13 | Pillar hydrant wrench FB450 | 1 | |
| 14 | Underground hydrant wrench FBX800 | 1 | |
| 15 | hydraulic monitor QZG3.5/7.5 | 2 | snap-type |
| 16 | Crowbar CT1 | 1 | |
| 17 | Spade 2# | 1 | |
| 18 | Fire axe GFJ817 | 1 | |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg
Company Profile:
Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”
The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
Product Tags:
|
|

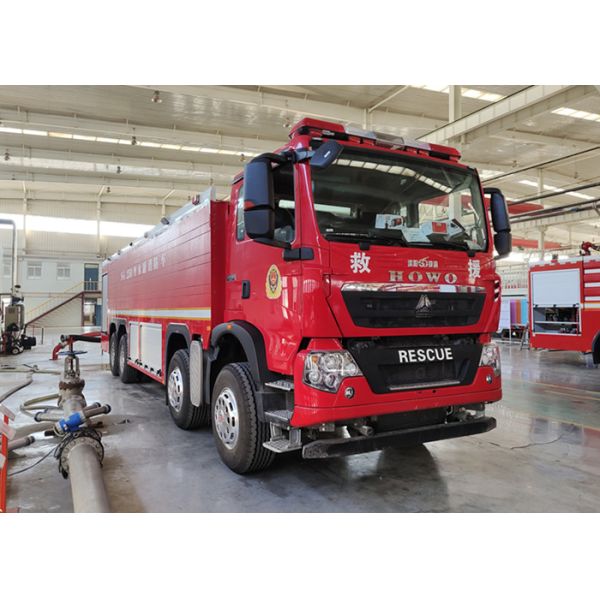

CIMC 6x4 Drive Foam Pumper Water Tanker Fire Trucks with 65m Discharge Range Images
|
