Shanghai Jindun H Style Outrigger Aerial Ladder Fire Truck 110A Generator

Name: Shanghai Jindun H Style Outrigger Aerial Ladder Fire Truck 110A Generator
Brand: Jindun
Price: 1 USD

Wholesale Shanghai Jindun H Style Outrigger Aerial Ladder Fire Truck 110A Generator from china suppliers

Brand Name : Jindun

Model Number : DG70

Certification : ISO9001/CCC

Place of Origin : SHANGHAI,CHINA

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 150 days

Packaging Details : standard package for international export

Supply Ability : 120 units/year

chassis : VOLVO

driving : 8×4

Wheelbase : 1995+4205+1370mm

Engine Power : 320/435(kw/hp)

Generator battery : 12V x 2

cabin : 1+1

Dimension : 10500×2500×3980

Net weight : 9230Kg

Max. loading : 23700Kg

Max. working height : 70m

Contact Now

Shanghai Jindun H Style Outrigger Multifunction Aerial Platform Fire Truck (110A Generator)

Product Parameter:

Dimension:(L×W×H)			13600×2500×3900mm
Full mass		42600kg
Max running		≥85km/h
outrigger		structure		H style
		longitudinal		8690mm
		transverse		7035mm
Outrigger leveling		Auto leveling+ manual leveling
Working cage load		500kg
Max. Working height		70m
Max. Working radius		24m
Boom structure		6down telescopic boom+2 up telescopic boom
Boom action angle		Down boom 0°——88° Down and up boom 0°——170°
Rotation range		360°full rotation
Outrigger extending time		≤50s
Time of Boom raise up at rate height and rotation with 90 °					≤310s
Water system
pump	American WATEROUS CX centrifugal fire pump flow:100 L/S @ 1.0 Mpa80 L/S @ 1.60Mpa Inlet flange:DN150,outlet flange:DN100
Fire monitor	American Elkhart:Scorpion RF 8294-EXM+SM-1250E,water/foam use electronic control monitor. Flow adjustment 1150——4800L/min；working pressure 0.55MPa. reach(water)≥55m. reach(foam)≥50m.(the reach will be different depending on water flow) Swivel angle ±45 degree； up angle 90 degree；depression angle 35degree. ≥100 m wireless control .
Foam head	Equip with foam monitor head
Water way control	Water way control mode:pneumatic control The position is left side of vehicle
Fire plumbing	Down part:stainless pipe + aluminum pipe
	Upper part: telescopic water pipe: aluminum alloy seamless tube Folding water pipe: aluminum alloy seamless tube Soft connection pipe: rubber soft tube
Water coupling	coupling					spec	Valve
	External Water Supply					2XDN80	Hose coupling with cover lid
	Upper Monitor inlet					1XDN125	Pneumatic butterfly valve
	Water supply from end of vehicle					2XDN80	Manual ball valve with cover
	Coupling type:quick coupling or slow coupling option
electric	turntable operative control, with comfortable chair
	Vehicle control mode:touch screen interface , computer control
	2 round siren light on top of cab siren alarm in cab camera reverse monitor vehicle radio interface preservation
	Automatic charger plug off wind meter in working cage overload warning in working platform video camera and disk video recording
Body frame	Step well ladder for climbing:each one for left and right side
	Body structure:aluminum alloy welding structure
	Body coaming:sticking with aluminum alloy plate
	Body platform/equipment box pump house top: oxidation antislipaluminum alloy plate
	Equipment box/pump house/tool box:Aluminum roller shutter

Shanghai Jindun H Style Outrigger Aerial Ladder Fire Truck 110A Generator

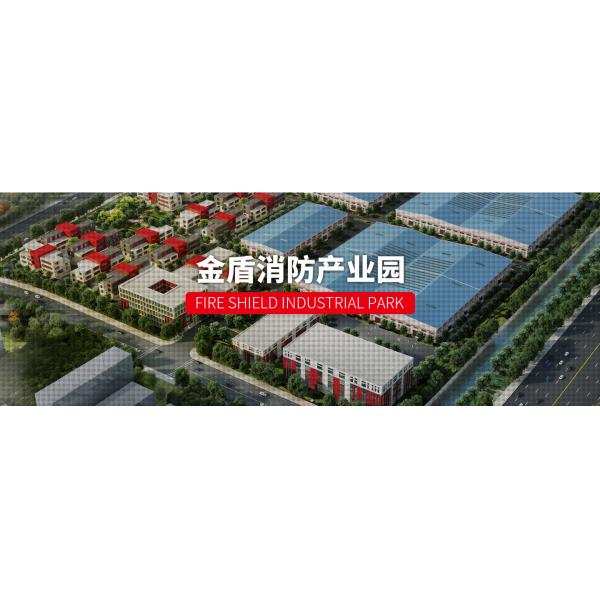

Company Profile:

Jindun as a member of China Fire Protection Association, was certified by TUV System, NFPA and CCCF. By excellent products and innovative technology, we are engaged in developing a “safe, livable and rich society.”

The company specializes in R & D and production of ladder cars, high pressure jet trucks, rail dual purpose fire engines, remote water supply vehicles, climbing platform vehicles, water tank foam cars, AT cars, emergency rescue vehicles, marine fire engines, anti-chemical detection vehicles, anti-chemical and decontamination vehicles, CAFS fire engines, airport fire engines, unmanned fire-fighting tankers, lighting fire engines, gas trucks, etc., and according to the changes of fire market and customer demand, Continue to develop high-end special fire engines and multifunctional and intelligent fire-fighting equipment.
