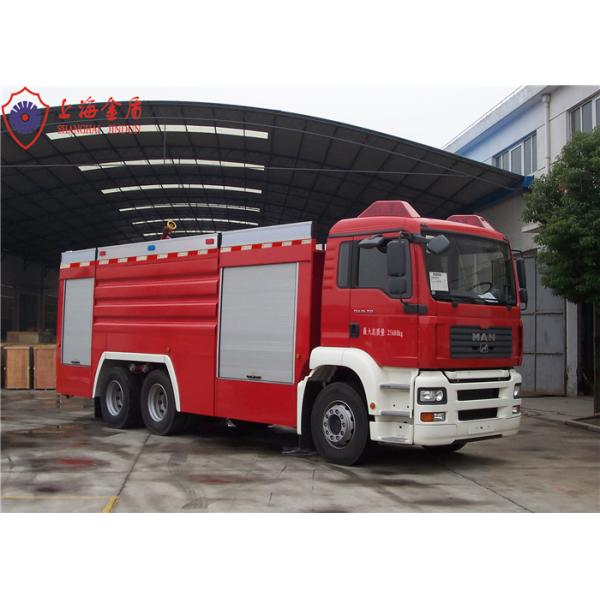

6x4 MAN Chassis Water Tanker Fire Truck With Direct Injection Diesel Engine
Vehicle
| Dimension (L×W×H) | 10180×2500×3650mm |
| Gross weight | 33320kg |
| Complete vehicle shipping mass | 15270kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
Pump drive system
| Model | NMV200 |
| Transmission shaft | High balance precision transmission shaft, use intermediate support connection |
Fire monitor
| Model | POK, PLC6000 |
| Position | At the top of rear vehicle |
| Flow | 1.0MPa/80L/s |
| Range | water≥80m ,foam≥50m |
| Rotation angle | Level≥270°
Max. elevation angle≥+45°
Max. depression angle≥-7° |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
