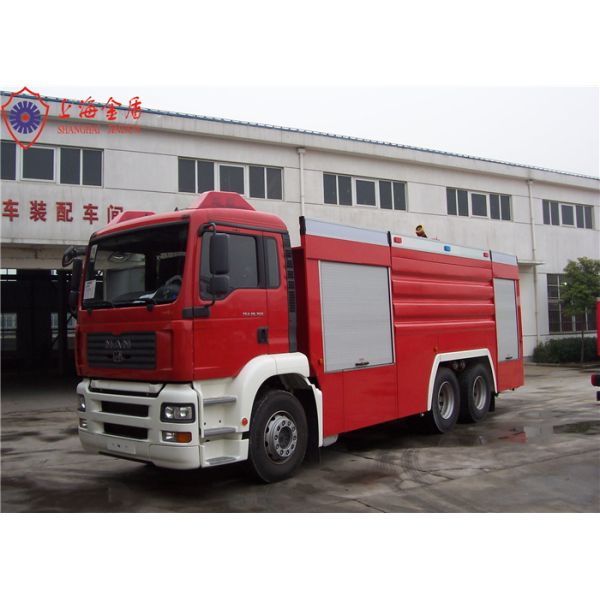

MAN Chassis 12 Ton Water Tanker Fire Truck With Direct Injection Diesel Engine 265kw Max power
Liquid tank
| Capacity | Water: 12000kg |
| Material | 304 high quality corrosion resistant plate |
| Structure | Total side girder |
| Device | 1 ingate 1 overflow device 1liquid level sensor 1 DN50 drain outlet with valve 4 filling pipe end Conform to rule GA39.4-92 |
Pedal plate
- Location: At the bottom of roller shutter door.
- Material: Steel frame covered by aluminum alloy checkered plate
- Structure: adopt the gas springs plus shutter fasten, safe and Reliable, each petal plate bearing ≥150Kg
Dash board and on-board equipment
Cab PTO gear switch
Pump room
| Function switch | lighting, water outlet, water injection, liquid outlet, monitor shot |
| Dash board | Pressure gauge, Water gauge, vacuum gauge, content gauge, tachometer |
Vehicle
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
